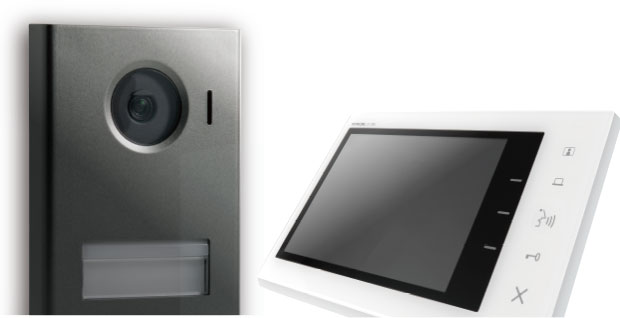

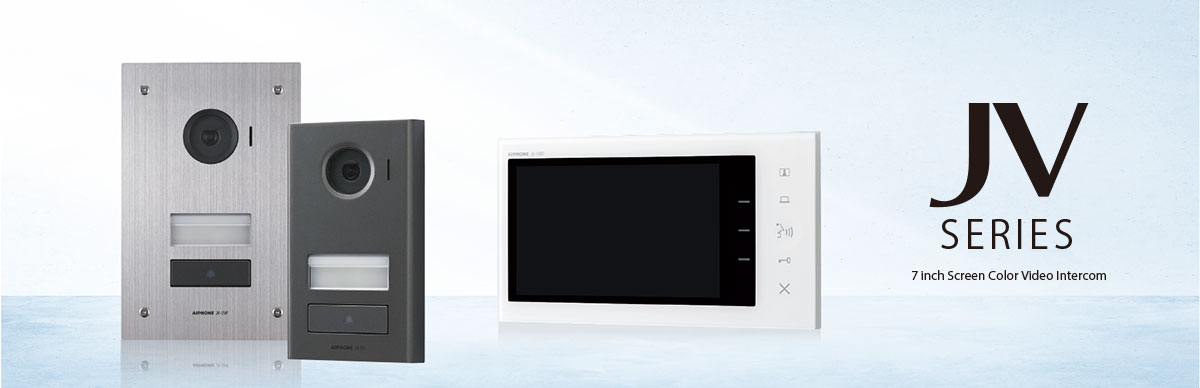

With advanced functionality and refined design, enrich your space with the 7- inch Video Intercom, JV Series

With advanced functionality and refined design, enrich your space with the 7- inch Video Intercom, JV Series

Seamless Elegance for Everyday Living.

Achieving a refined, noise-free, flat design by eliminating microphone or speaker slots from the front.

nameplate image

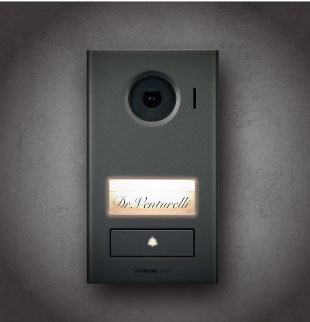

Illuminated nameplate

A harmonious integration of nighttime lighting and nameplate in a sleek and practical design.

nameplate image

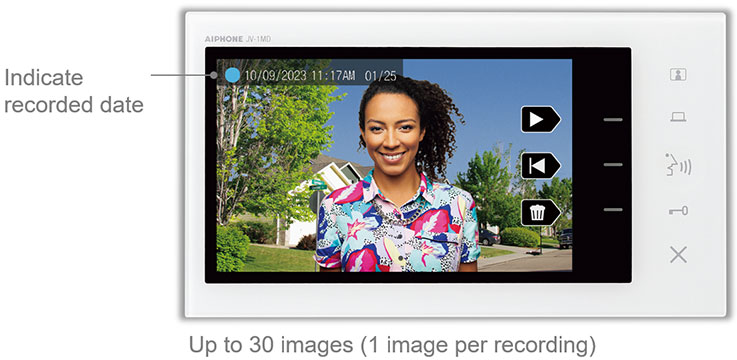

Picture Memory

The Picture Memory function is employed by the Master Monitor Station. Record an image automatically by pressing the call button on the Door Station. Verification of visitors during the absence is possible.

picture memory image

Note: Following functions are not available;*Manual Recording, *Protect to overwrite recordings, *Play recordings on other devices

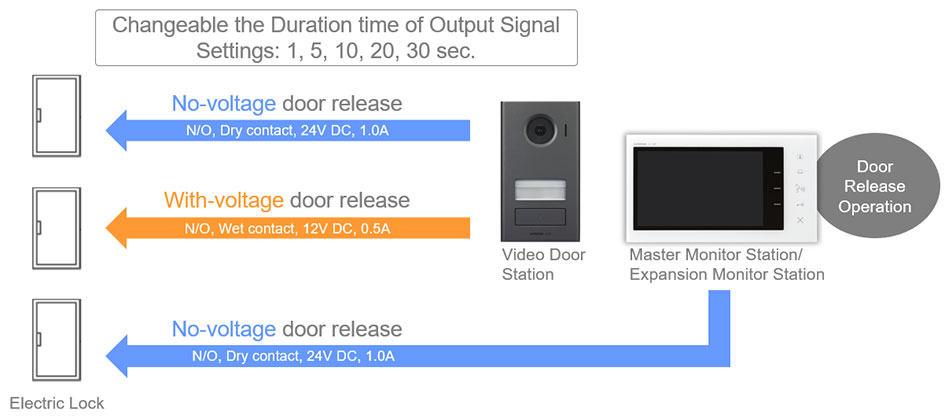

Door Release

The Output Signal to release door lock is selectable from three ways. Choose appropriate one to suit the installation.

Door Release Operation image

Option Output

The optional output is adopted for controlling external devices such as Light, Garage gate, and other Electrical Lock etc. The duration time is selectable.

System Configuration

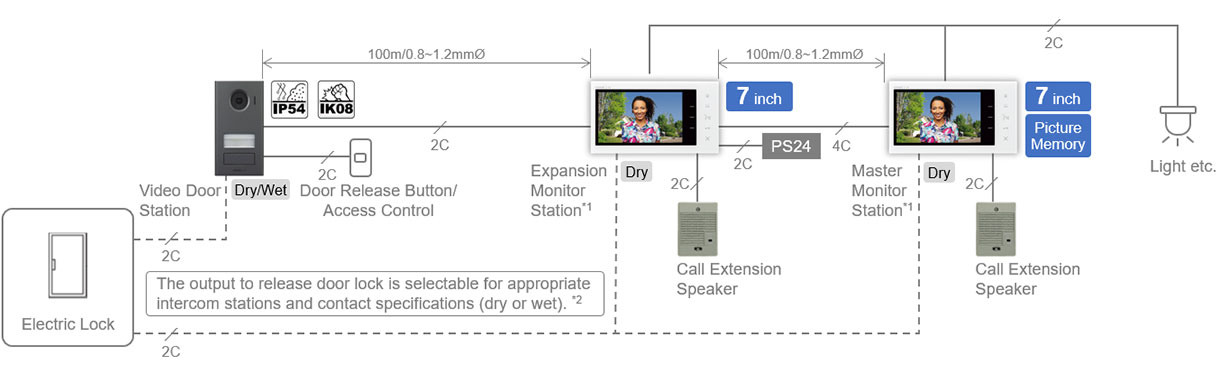

Installations using two room stations

two room stations image

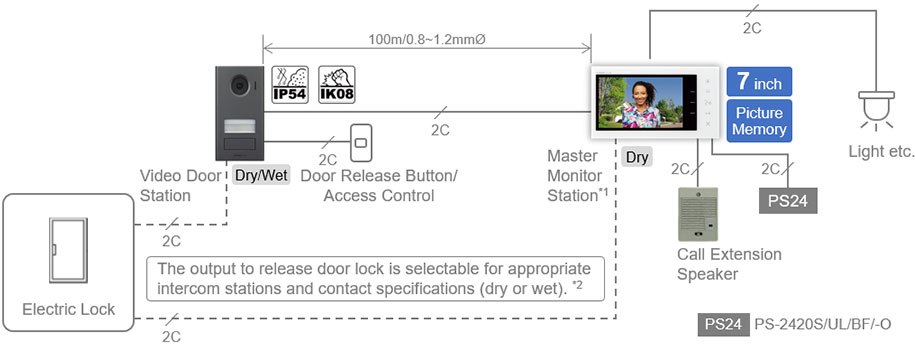

IInstallations using a single room station

a single room station image

*1. Room to room communication is not available.
*2. PT (AC transformer) is required when selecting dry contact.

System Components

Boxed sets

product
JVS-1V
JVS-1F

Boxed sets

JVS-1V: JV-1MD, JV-DV
JVS-1F: JV-1MD, JV-DVF
*Add appropriate power supply.

Master station

product
JV-1MD

Master monitor station

Door station

product
JV-DV

Door station

product
JV-DVF

Door station

Expansion monitor station

product
JV-1FD

Expansion monitor station
