PC application

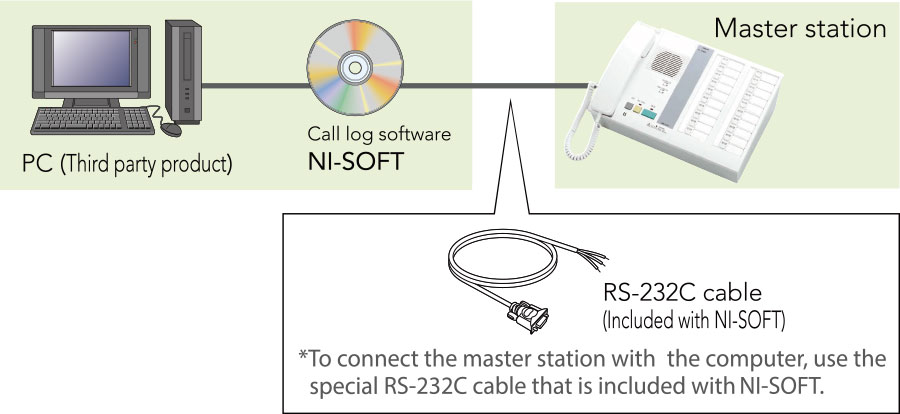

Diagram

*NIM software (NI-SOFT) is needed to manage call histories. Install NI-SOFT on your PC.

Example of graph display

Number of calls from sub stations

This allows nursing staff to see which patients have the highest number of calls, enabling management to schedule and prioritize care.

Application window

Number of calls during different times of day

This enables verif ication of peak-time trends, enabling management to adjust staffing accordingly.

Application window

Response time for calls

View the number of seconds from call to response, which can be useful in improving the level of service.

Application window

System requirements for PC

OS Windows 7 Home Premium/Professional/Ultimate (Service Pack 1, 32/64bit)
Windows 8.1/Pro (32/64bit)
Windows 10 Home/Pro (32/64bit)
Windows 11 Home/Pro (64bit)
Processor 2.7 GHz or higher
System memory (RAM) 2 GB RAM or higher
Hard drive 100 MB or more (Additional space is needed during installation.)
Requirements • RS232C port installed on the PC or an add-in board
• CD-R readable drive
• A PC operable 24 hours a day
• Display : 1024 (W) x 768 (H) or higher, 16-bit color or higher
• Font : Arial
• Run-time : Microsoft.NET Framework 4.5

Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
*The application may not run or may not operate correctly (such as freezes occurring) on a PC with specifications below the necessary requirements.
*We recommend using a PC that exceeds the basic system requirements.
